Stainless Steel 316L Flanges

Manufacturer of ASTM A182 F316L SORF flange in India. Check 316L Stainless Steel Flanges Specification

Great Steel & Metals is a 316L Stainless Steel Flanges Manufacturer who produces different types of flanges for use across different application. Our product range includes a variety of flanges with different standards, grades, pressure classes and weight. Our UNS S31603 SS Flange Weight Chart could be obtained upon contacting us. Our 316L stainless steel flanges have low carbon content.


Stainless Steel 316L Flanges

And these could be used in applications that require heavy welding. The intergranular corrosion is avoided by the low carbon content by reducing the carbide precipitation while welding. Our SS 316L Grade Blind Flange is used to terminate a connection with a blind end. Flanges are used to close the connection permanently in contrast to caps which close the connections temporarily. The Werkstoff No 1.4435 SS Weld Neck Flange Rating classifies the chromium nickel molybdenum austenitic steel flange properties. Our 316L Stainless Steel Pipe Flanges are made up of superior quality raw material according to the international standards. Flanges are used in different applications and special grades are applied for special applications. The used of different flanges such as the ASME SA182M Stainless Steel 316L Slip On Flange could be seen in different applications. We produce flanges to be used in food processing, chemical, oil and gas, marine and automotive industries. Our flanges range from blind, flat, raised, weld neck to slip on flanges. The Stainless Steel 316L Plate Flange is mostly plain and is used to seal connections with maximum area of grip. Usually these come with bolt holes for nuts and bolts. Great Steel & Metals covers all your requirements for flanges.

Table of contents

SUS 316L Plate Flanges and Inox 316L plate flange Supplier in Mumbai

ASTM A182 F316L Plate Flange Specification

Stainless Steel 316L Flanges Specification

Stainless steel 316L Flanges size

Stainless steel 316L Flanges size

  • 15NB - 1200NB
  • 1/2" to 48"
DIN 1.4435 pipe flange ASTM standard

DIN 1.4435 pipe flange ASTM standard

  • ASTM A182
  • ASME SA182
ASTM A182 F316L flanges pressure class

ASTM A182 F316L flanges pressure class

  • 150 #
  • 300 #
  • 600 #
  • 900 #
  • 1500 #
  • 2500 #
316L stainless steel forged flange German standard

316L stainless steel forged flange German standard

  • DIN 2573, 2578
  • Lapped - DIN 2622, 2655, 2641, 2656 Type 2, 4
  • Blind - DIN 2527
  • Threaded - DIN 2558, 2568, 2566, 2565, 2567, 2569 Type 12
  • Weld neck - DIN 2627 to DIN 2638 Type 11
A182 F316L forged steel flanges requirements

A182 F316L forged steel flanges requirements

  • NACE TM-0284
  • Sour service
  • NACE MR0175
  • ISO 15156
  • NACE MR0103
SA 182 F316L weld flanges testing methods

SA 182 F316L weld flanges testing methods

  • Positive Material Identification Test
  • Shell pressure test
  • Material inspection
  • Hardness test
  • Tensile test
  • Impact test
  • Visual inspection
SS 316L hot forged flange American standards

SS 316L hot forged flange American standards

  • ASME B16.47
  • ASME B16.5
  • ASME B16.36
  • ASME B16.48
F316L forged pipe flange origin standards

F316L forged pipe flange origin standards

  • Janpanese Standard
  • American Standard
  • European Standard
  • Russia Standard
ASTM A182 GR F316L blind flange thread types

ASTM A182 GR F316L blind flange thread types

  • NPT
  • FPT
  • BSPT
  • BSP
  • MNPT
  • FNPT
  • MPT
  • BSPP
A182 GR F316L weld neck flange faces types

A182 GR F316L weld neck flange faces types


  • RF : Raised face
  • LJ : Lap joint
  • T&G : Large and small tongue and groove
  • FF : Flat face
  • M&F Male and female
  • RTJ : Ring joint
SA 182 F 316L socket weld flange marking

SA 182 F 316L socket weld flange marking

  • Face type
  • Origin of material
  • Sizes
  • ASTM standard
  • Manufacturers logo
  • Pressure class
  • Grade
SUS 316L flanges types

SUS 316L flanges types

  • SA 182 F 316L weld neck flanges
  • F316L stainless steel backing flange
  • INOX 316L reducing flange
  • SA 182 GR F316L slip on flanges
  • DIN 1.4435 blind flanges
  • UNS S31603 threaded flanges
  • SUS 316L LWN flanges
  • EN 1.4435 lap joint flanges
  • A182 Gr. F316L socket weld flanges
DIN 1.4435 face forged pipe flange types

DIN 1.4435 face forged pipe flange types

  • 1.4435 stainless steel ring type joint blind flange
  • A182 Gr F316L threaded blind flange
  • AISI 316L stainless steel raised face blind flange
  • ASTM A182 Grade F316L flat face blind flange
  • SA 182 Gr F316L forged blind flange
A182 Gr. F316L weld neck flange types

A182 Gr. F316L weld neck flange types

  • ASME SA182 Grade F316L raised face weld neck flange
  • UNS S31603 stainless steel long weld neck flange
  • Werkstoff No 1.4435 flat face weld neck flange
  • A182 F316L ring type joint weld neck flange
AISI 316L stainless steel pipe flanges other types

AISI 316L stainless steel pipe flanges other types

  • SA 182 F316L spade flange
  • SS 316L orifice plate
  • 316L SS anchor flange
  • F316L swivel flange
  • ASTM A182 GR F316L expander flange
  • A182 GR F316L reducing flange
  • A182 F316L high hub blind flange
  • F316L stainless steel ring spacer flange
1.4435 stainless steel slip on flange types

1.4435 stainless steel slip on flange types

  • SA 182 F 316L forged slip on flange
  • A182 316L threaded slip on flange
  • A 182 F316L raised face slip on flange
  • AISI 316L flat face slip on flange
  • INOX 316L ring type joint slip on flange
SA 182 Gr F316L reducing flange value added services

SA 182 Gr F316L reducing flange value added services

  • Drilling
  • Beveling end
  • Electroplating
  • Minor Fabrication
  • Casting
  • Pickled
  • Sand Blasting
  • CNC machined
  • Rolling
  • Threading
  • Cutting
  • Forging
  • Heat Treatment
  • Polishing
SA182 Grade F316L lap joint flange ASME standard

SA182 Grade F316L lap joint flange ASME standard

  • ASME B16.1
  • ASME B16.5
  • ASME B16.21
  • ASME B16.20
  • ASME B16.24
  • ASME B16.34
  • ASME B16.36
  • ASME B16.47
INOX 316L plate flanges packaging

INOX 316L plate flanges packaging

  • Wooden Boxes
  • Custom
  • Wrapped in plastic
A 182 F316L plate flanges tensile strength

A 182 F316L plate flanges tensile strength

  • 75000 psi
  • 515 Mpa
ASTM F316l flanges elongation

ASTM F316l flanges elongation

  • 35 %
SA-182 F316L SORF Flange Yield Strength

SA-182 F316L SORF Flange Yield Strength

  • 30000 Psi
  • 205 Mpa
ASTM A182 316L WNRF Flange Melting Point

ASTM A182 316L WNRF Flange Melting Point

  • 1399 °C
  • 2550 °F
SA182 F316L BLRF Flange Largest Bore Diameter Sizes

SA182 F316L BLRF Flange Largest Bore Diameter Sizes

  • NPS ≤ 10
ASTM A182 gr. F316l RTJ Flange Production Technique

ASTM A182 gr. F316l RTJ Flange Production Technique

  • Heat treated
  • Machined
  • Forged
Thermal Conductivity

Thermal Conductivity

  • 16.3 W.m -1.°K-1
Specific Heat

Specific Heat

  • 500 J.kg-1.°K-1
Modulus Elasticity

Modulus Elasticity

  • 193 Gpa
Electrical Resistivity

Electrical Resistivity

  • 7.4 μohm/cm
Thermal Expansion

Thermal Expansion

  • 15.9 mm/m/°C
Stainless Steel 316L Flanges Equivalent standards

Stainless Steel 316L Flanges Equivalent standards

  • WERKSTOFF NR. : 1.4435
  • JIS : SUS 316L
  • GOST : 03Ch17N14M3 / 03Ch17N14M2
  • BS : 316S11 / 316S13
  • EN : X2CrNiMo17-12-2 / X2CrNiMo18-14-3
  • UNS : S31603
  • AISI 316L
  • INOX 316L
  • GB : 00Cr17Ni14Mo2
ASTM A182 Grade F316L threaded flange dimensional standards

ASTM A182 Grade F316L threaded flange dimensional standards

  • ASTM
  • ASME
  • DIN
  • GB
  • SUS
  • BS
  • JIS
  • SS
  • EN

Reliable GSM Blind Flanges Supplier in Saudi Arabia, we offer products with Custom Sizes

ASTM A182 F316L Sorf Flange Pressure Rating 150# to 2500# With Custom Sizes

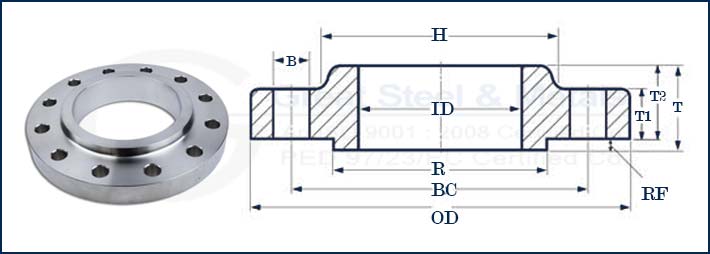

300# 316L SS Sorf flanges Dimensions

300# 316L SS Sorf flanges Dimensions

316L stainless steel flanges in NPS 1/2 1 1-1/2 2-1/2 3-1/2 5 8 12 16 18 22
ID .88 1.36 1.95 2.94 4.07 5.66 8.72 12.88 16.16 18.18 22.22
BC - Bolt Circle 2.62 3.5 4.5 5.88 7.25 9.25 13 17.75 22.5 24.75 29.25
OD 3.75 4.88 6.12 7.5 9 11 15 2 .5 25.5 28 33
RF - Raised Face .063 .063 .063 .063 .063 .063 .063 .063 .063 .063 .063
R - Raised Face 1.38 2 2.88 4.12 5.5 7.31 1 .62 15 18.5 21 25.25
T - Raised Face Thck .88 1.06 1.19 1.5 1.75 2 2.44 2.88 3.25 3.5 4
H 1.5 2.12 2.75 3.94 5.25 7 1 .25 14.75 19 21 25.25
T2 - Flat Face Thck .82 1 1.13 1.44 1.69 1.94 2.38 2.82 3.19 3.44 3.94
No. of Bolt Holes 4 4 4 8 8 8 12 16 20 24 24
T1 .5 .63 .75 .94 1.13 1.32 1.56 1.94 2.19 2.32 2.57
B - Bolt Hole .62 .75 .88 .88 .88 .88 1 1.25 1.38 1.38 1.63

SS 316L Flanges Dimensions

Standard Class Diameter Bolt Circle Diameter Number of Bolts Bolt Size Diameter of Bolt Hole
AS4087 PN14 95 67 4 M12 14
AS 2129 Flange Table C 95 67 4 13 14
Table D 95 67 4 13 14
Table E 95 67 4 13 14
Table F 95 67 4 13 14
Table H 114 83 4 16 17
Table J 114 83 4 16 17
ANSI B16.5 ANSI 150 89 60 4 13 16
ANSI 300 95 67 4 13 16
ANSI 600 95 67 4 13 16
ANSI 900 121 83 4 19 22
ANSI 1500 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 80 55 4 M10 11
PN10 95 65 4 M12 14
PN16 95 65 4 M12 14
PN20 90 60.5 4 M14 16
PN25 95 65 4 M12 14
PN40 95 65 4 M12 14

With years of industry expertise, we are an Experienced GSM Blind Flanges Supplier in Saudi Arabia

AISI 316L Stainless Steel Socket Weld Flange Accordance to ASME B16.5 Standard

Types of Stainless Steel 316L Flanges

Stainless Steel 316L Flange SORF

Stainless Steel 316L Flange SORF

SS 316L Flange SWRF

SS 316L Flange SWRF

316L SS Flange WNRF

316L SS Flange WNRF

316L SS Flange BLRF

316L SS Flange BLRF

Stainless Steel 316L Grade Flange Exhaust

Stainless Steel 316L Grade Flange Exhaust

SS 316L Grade Flange Girth

SS 316L Grade Flange Girth

AISI 316L SS Flange Lap Joint

AISI 316L SS Flange Lap Joint

SAE 316L SS Flange Long Weld Neck

SAE 316L SS Flange Long Weld Neck

1.4435 AISI 316L SS Flange Orifice

1.4435 AISI 316L SS Flange Orifice

Stainless Steel Grade 316L Plate Flange

Stainless Steel Grade 316L Plate Flange

SS UNS S31603 RTJ Flange

SS UNS S31603 RTJ Flange

Stainless Steel UNS S31603 Flange Spectacle

Stainless Steel UNS S31603 Flange Spectacle

ASTM A182 F316L Stainless Steel Flange Square

ASTM A182 F316L Stainless Steel Flange Square

SUS 316L Stainless Steel Flange Threaded

SUS 316L Stainless Steel Flange Threaded

Food Grade 316L Stainless Steel Flange Anchor

Food Grade 316L Stainless Steel Flange Anchor

Grade 316L Stainless Steel Flange Blank

Grade 316L Stainless Steel Flange Blank


Trusted GSM Blind Flanges Provider in Saudi Arabia with different Flange Faces

ASTM A182 f316L SORF Flange Face Type

ASTM A182 f316L SORF Flange Face Type

Weight Chart of ASTM A182 F316L Plate Flange

Pipe Normal Diam. Outer diameter Flange  Diameter of Raised Face  Thickness Of Flange  Diameter
of
Hub 		 Thread Length Length Hub.Y Diam.
of Bolt
Holes		 Diam.
of Bolt
Circle		 Number
of Bolts		 Diam. of
Bolts
(inch)		 KG LB
inch dn O G C X T Y BH BC BN BD
1/2 15 89.00 35.10 11.20 30.20 15.70 15.70 15.80 60.50 4 1/2 0.4 0.9
3/4 20 98.50 42.90 12.70 38.10 15.70 15.70 15.80 69.90 4 1/2 0.7 1.5
1 25 108.00 50.80 14.20 49.30 17.50 17.50 15.80 79.30 4 1/2 0.8 1.8
1-1/4 32 117.50 63.50 15.70 58.70 20.60 20.60 15.80 88.90 4 1/2 1.2 2.6
1-1/2 40 127.00 73.20 17.50 65.00 22.40 22.40 15.80 98.60 4 1/2 1.5 3.3
2 50 152.50 91.90 19.10 77.70 25.40 25.40 19.10 120.70 4 5/8 2.3 5.1
2-1/2 65 178.00 104.60 22.40 90.40 28.40 28.40 19.10 139.70 4 5/8 3.7 8.1
3 80 190.50 127.00 23.90 108.00 30.20 30.20 19.10 152.40 4 5/8 4.1 9
3-1/2 90 216.00 139.70 23.90 122.20 31.80 31.80 19.10 177.80 8 5/8 5.1 11.2
4 100 228.50 157.20 23.90 134.90 33.30 33.30 19.10 190.50 8 5/8 5.9 13
5 125 254.00 185.70 23.90 163.60 36.60 36.60 22.40 215.90 8 3/4 7 15.4
6 150 279.50 215.90 25.40 192.00 39.60 39.60 22.40 241.30 8 3/4 8.4 18.5
8 200 343.00 269.70 28.40 246.10 44.50 44.50 22.40 298.50 8 3/4 13 28.6
10 250 406.50 323.90 30.20 304.80 49.30 49.30 25.40 362.00 12 7/8 18 39.5
12 300 482.50 381.00 31.80 365.30 55.60 55.60 25.40 431.80 12 7/8 29 64
14 350 533.50 412.80 35.10 400.10 57.20 57.20 28.50 476.30 12 1 39 86
16 400 597.00 469.90 36.60 457.20 63.50 63.50 28.50 539.80 16 1 47 103
18 450 635.00 533.40 39.60 505.00 68.30 68.30 31.80 577.90 16 1 1/8 57 126
20 500 698.50 584.20 42.90 558.80 73.20 73.20 31.80 635.00 20 1 1/8 76 167
24 600 813.00 692.20 47.80 663.40 82.60 82.60 35.10 749.30 20 1 1/4 97 214

Torque Chart of SS 316L Pipe Flange

Size in Inches Size in MM Number of Bolts Bolt Diameter Bolt Stress
lbs/inch		 Torque
lbf.feet		 Torque
Nm
1/2 15 4 ½” 25,000 22 30
1 35 4 ½” 33,000 29 39
3/4 20 4 ½” 30,000 26 36
1 ½ 40 4 ½” 50,000 44 60
3 80 4 5/8” 50,000 86 117
2 50 4 5/8” 50,000 86 117
4 100 8 5/8” 40,000 69 93
8 200 8 ¾” 45,000 137 185
6 150 8 ¾” 45,000 137 185
10 250 12 7/8” 40,000 194 263
14 350 12 1” 41,000 296 401
12 300 12 7/8” 40,000 194 263
16 400 16 1” 40,000 289 392
20 500 20 1 1/8” 40,000 421 571
18 450 16 1 1/8” 40,000 421 571
24 600 20 1 ¼” 40,000 588 797

ASTM A182 Grade F316L Reducing and Lap Joint Flange With With Mtc at Best Price in India

Stainless Steel 316L Flanges price list

SS 316L flanges Price Per Piece Price in USD Price in AED
Class 150 SUS 316L weld neck flange $ 16.99 AED 62.40
Class 300 BSPT SS 316L Threaded flange $ 22.10 AED 81.17
Class 300 AISI 316l Blank Flange $ 17.68 AED 64.94
Stainless Steel 316L Class 300 Slip On Flange Price List $ 17.45 AED 64.09

Pressure Rating of Stainless Steel 316L Flanges

Temperature in °F 150 LBS 300 LBS 400 LBS 600 LBS 900 LBS 1500 LBS 2500 LBS
-20 to 100 275 720 960 1440 2160 3600 6000
400 190 495 660 995 1490 2485 4140
200 230 600 800 1200 1800 3000 5000
500 170 465 620 930 1395 2330 3880
650 125 430 575 860 1290 2150 3580
600 140 435 580 875 1310 2185 3640
300 205 540 720 1080 1620 2700 4500
750 95 415 555 830 1245 2075 3460
850 65 395 530 790 1190 1980 3300
700 110 425 565 850 1275 2125 3540
900 50 390 520 780 1165 1945 3240
800 80 405 540 805 1210 2015 3360
1000 20 320 430 640 965 1605 2675
950 35 380 510 765 1145 1910 3180
1050 20 310 410 615 925 1545 2570
1200 20 155 205 310 465 770 1285
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1250 20 115 150 225 340 565 945
1400 20 50 65 95 145 240 400
1500 10 25 35 55 80 135 230
1450 15 35 45 70 105 170 285

Dependable GSM Blind Flanges Distributor in Saudi Arabia with material properties

316L Stainless Steel Flange Chemical Composition

Grade Carbon Nickel Manganese Sulfur Chromium Silicon Phosphorus Phosphorus
SS 316L 0.03 10.00/14.00 2.00 0.030 16.00/18.00 1.00 0.045 2.00/3.00

SS 316L Flange Properties

Grades Unified Numbering System Elongation
min 		Yield Tensile Hardness
Brinell 		Hardness
Rockwell B
316L S31603 35% in 2″ 25 70 217 95

Stainless Steel 316L Flange Equivalent

Grade Unified Numbering System WERKSTOFF Number European Standards Japanese Industrial Standards British Standards
SS 316L S31603 1.4404 / 1.4435 X2CrNiMo17-12-2 / X2CrNiMo18-14-3 SUS 316L 316S11 / 316S13


Stainless Steel 316L Flanges Supplied in following projects

Location Project
Nam Con Son basin, Vietnam Sao Vang and Dai Nguyet Gas and Condensate Fields Development
North Sea, UK Penguins Field Redevelopment, North Sea
Aegean Sea, Greece Alexandroupolis Independent Natural Gas System (INGS) Project
Gulf of Guinea, Nigeria Zabazaba and Etan Integrated Development Project
Offshore Peninsular Malaysia Ophir Oil Field Development
